This document describes the steps to follow when you perform and submit a scan with MSoft +, also called the autoprocess. To summarize, you will scan, add an order form, submit to the autoprocess in the cloud, then submit the resulting 3D file to your C-fab.

  1. Choose your scan mode and perform your scan.


You can look at the tutorial video if needed.


  1. Make sure you place the overlay correctly so that the validation dots are  where they should be, since these dots will make the alignment of the body part in the software.

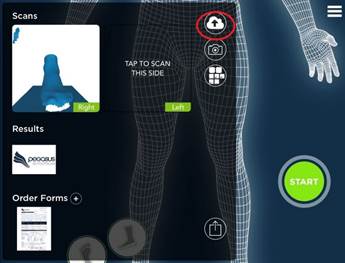

  1. After you are satisfied with the scan, select and fill an order form and click on the ‘Submit’ button:

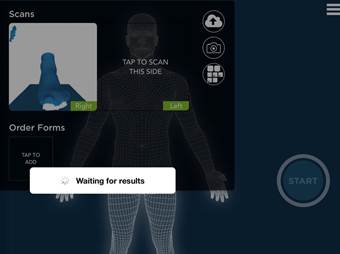

  1. The scan is sent and processed in the cloud, where it will be clipped, cleaned and reconstructed.

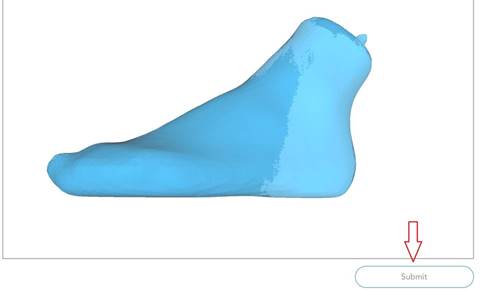

  1. Shortly after, you will then receive a resulting 3D file. If the body part is correctly reconstructed and is representative of what you scanned, you will then click on submit:

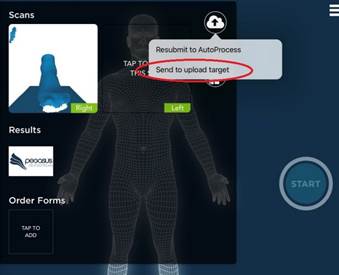

  1. Then, press the ‘Send to upload target’ button, it will generate an email that will include the processed scan and the order form:


  1. Last step, click on the submit button to send the complete package to Pegasus Orthotics.


Special note:

In the above case, when you submit, everything is sent all at once. However, it is possible to send an individual document, either the scan, an order form or a picture separately. To do so:

  1. Click on the selector button.
  2. Hit the document you want to send (picture, scan, order form)
  3. Click the ‘send’ button.


For additional information, please contact Pegasus Orthotics.
