Dorsum + Imprint file processing

Dorsum + Imprint file processing

After scanning with 3DsizeMe, you can open both files using MSoft, which will help you reconstruct the file.



Step 1: Open the file

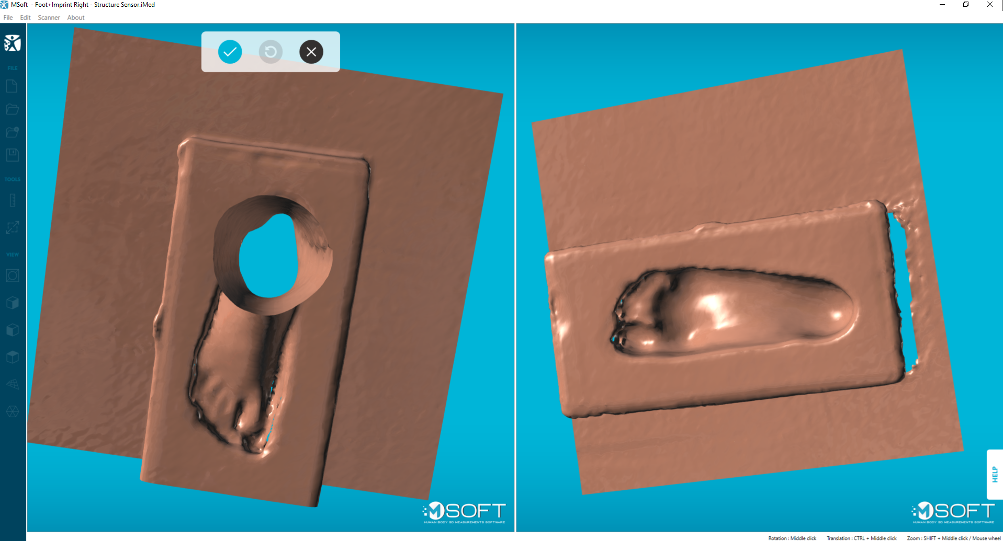

Step 2: Place 3 dots on both files (using the same position on each files) so the software can stitch them together. We recommend 2 at the end of the box and one close to the big toe:

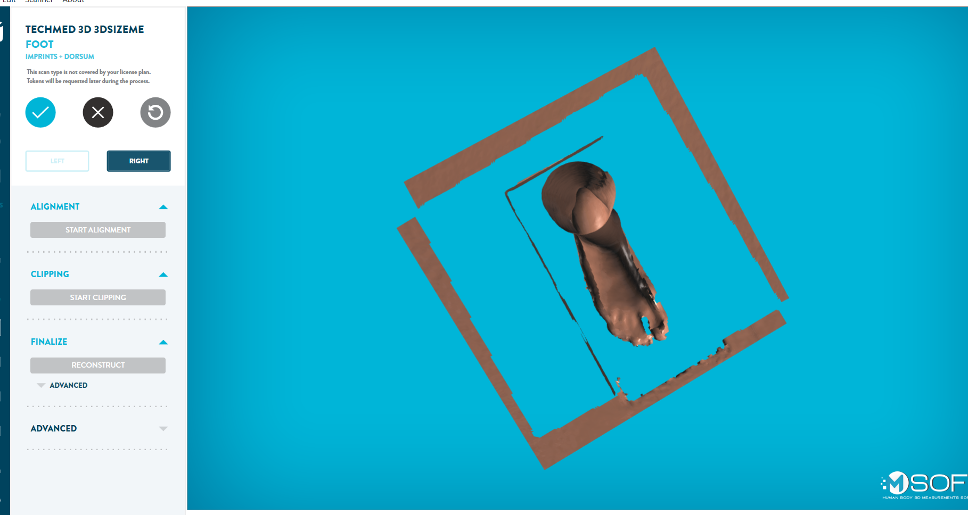

Step 3: After the stitching, you will see both files together like the picture below.

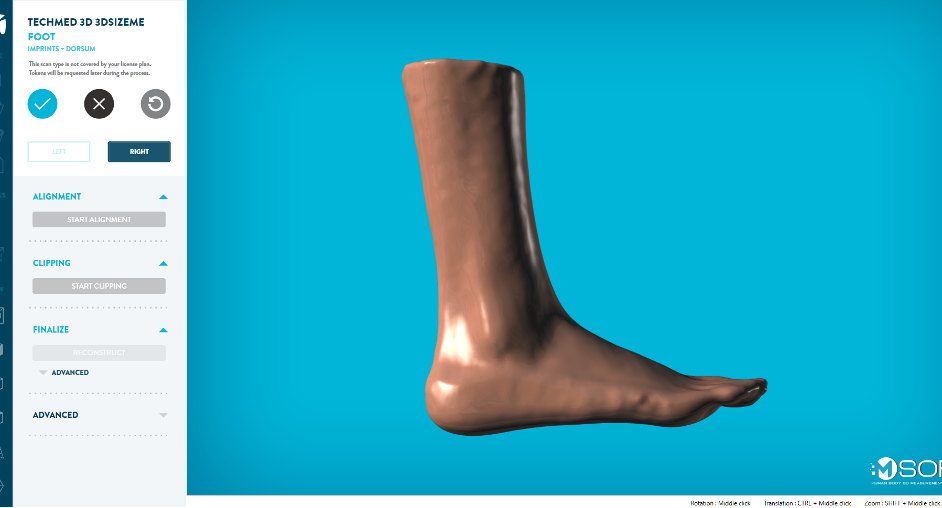

Step 4: From there, you will be able to manipulate the file using the 3 steps (align, clip and reconstruct). You will get a complete closed foot just like in the following picture.



    Still need help?

    Contact us at support@techmed3d.com!
