Processing a torso scan with MSoft in 3 easy steps

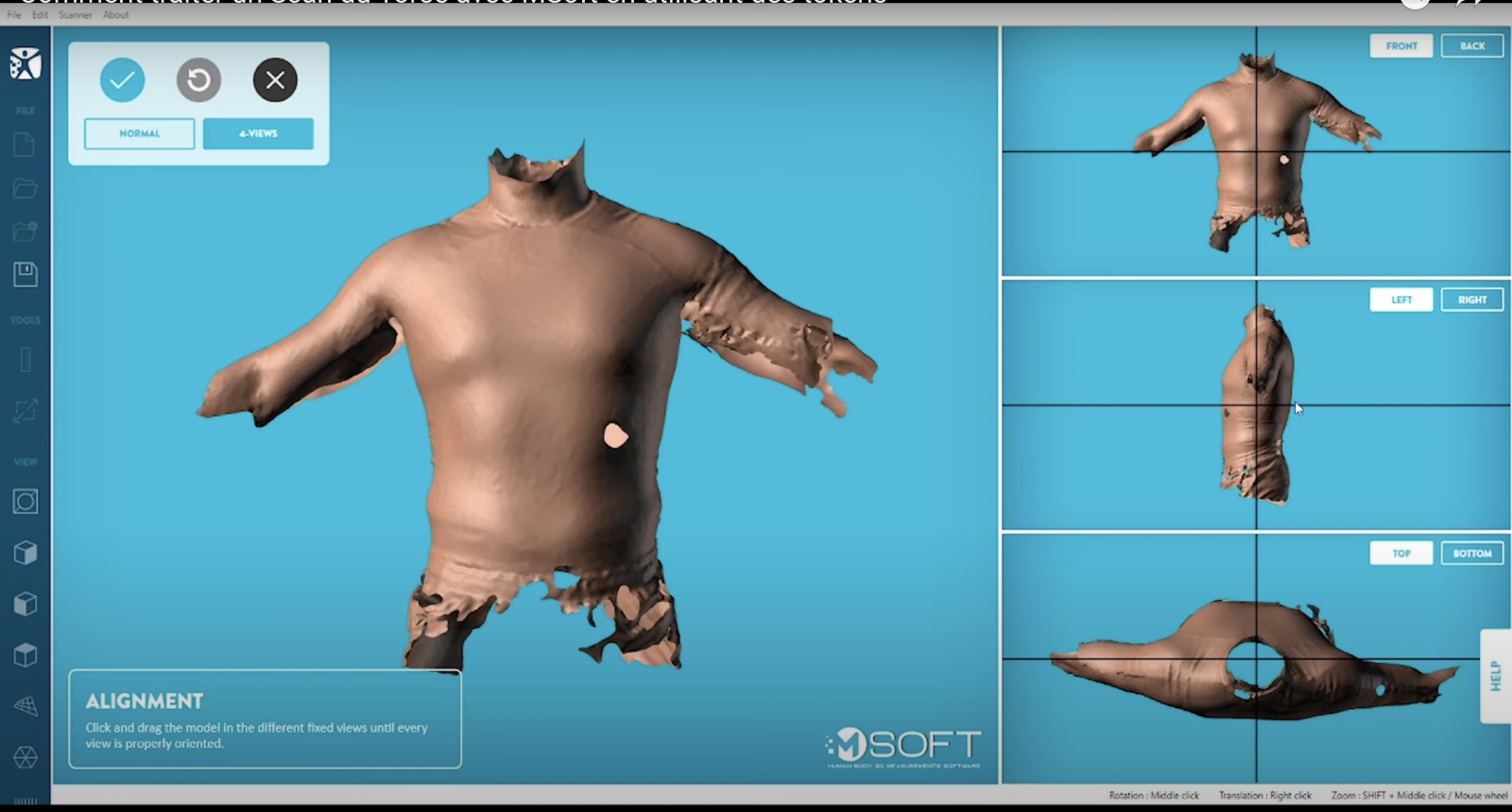

First, align your scan.
Aligning your scan using the 4 Views will indicate to MSoft which are the front, left or right side and top of your model. Click and rotate the model until every view is properly oriented.
Second, clip your scan.
Clipping your scan is essential to cut the parts you don't need, resulting in a cleaner model. You can use different tools to cut your model such as plan cutting. When you are done, validate and proceed to the next step.
Third, reconstruct your model.
The reconstruction is the automatic process in which MSoft will smooth your model to create a clean watertight result. MSoft will proceed in only a couple of seconds.
Once the model is reconstructed, MSoft will ask you if you want to use tokens to save your work. If you are using an unlimited licence, you won’t need to spend tokens and directly access to your final file. After accepting, you will be able to save your file in the format and folder of your choice. You will also have access to the measurements section.
To precisely learn how to process a torso scan with MSoft, watch this tutorial video:
Still need help?
Contact us at support@techmed3d.com!
