Starting points for plantar surface scans

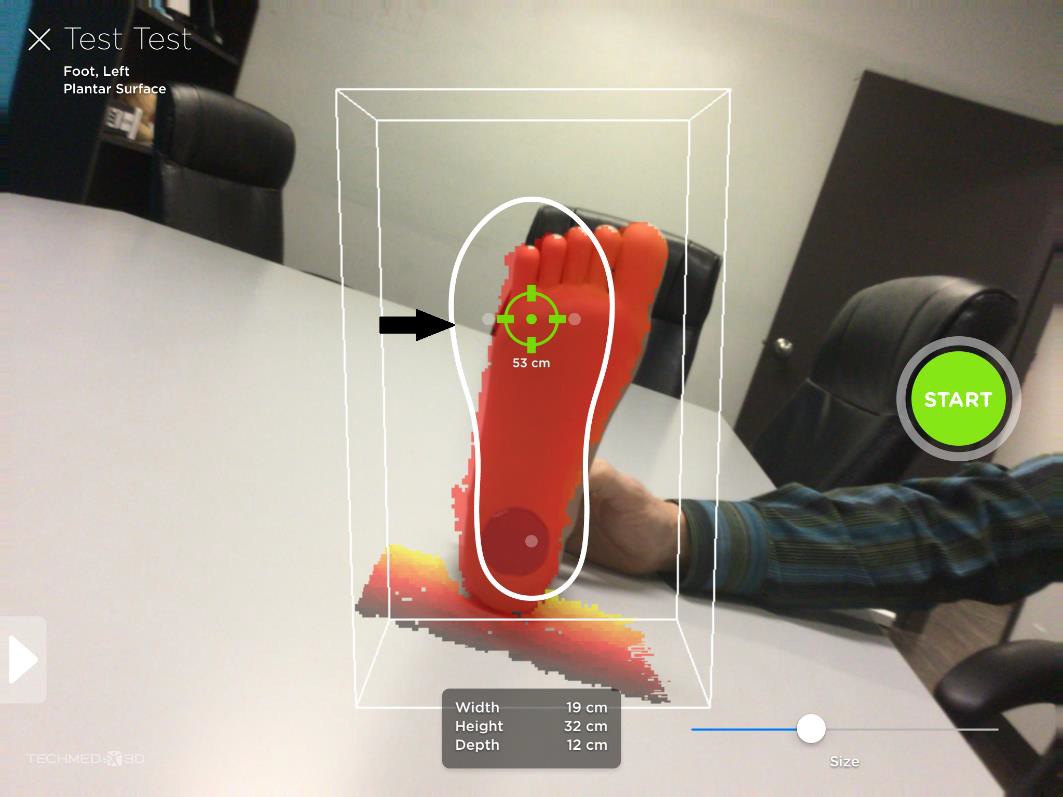

Wrong position
The distance is good, but the foot gauge is not positioned correctly on the plantar surface, so the left positioning dot is not on the foot.

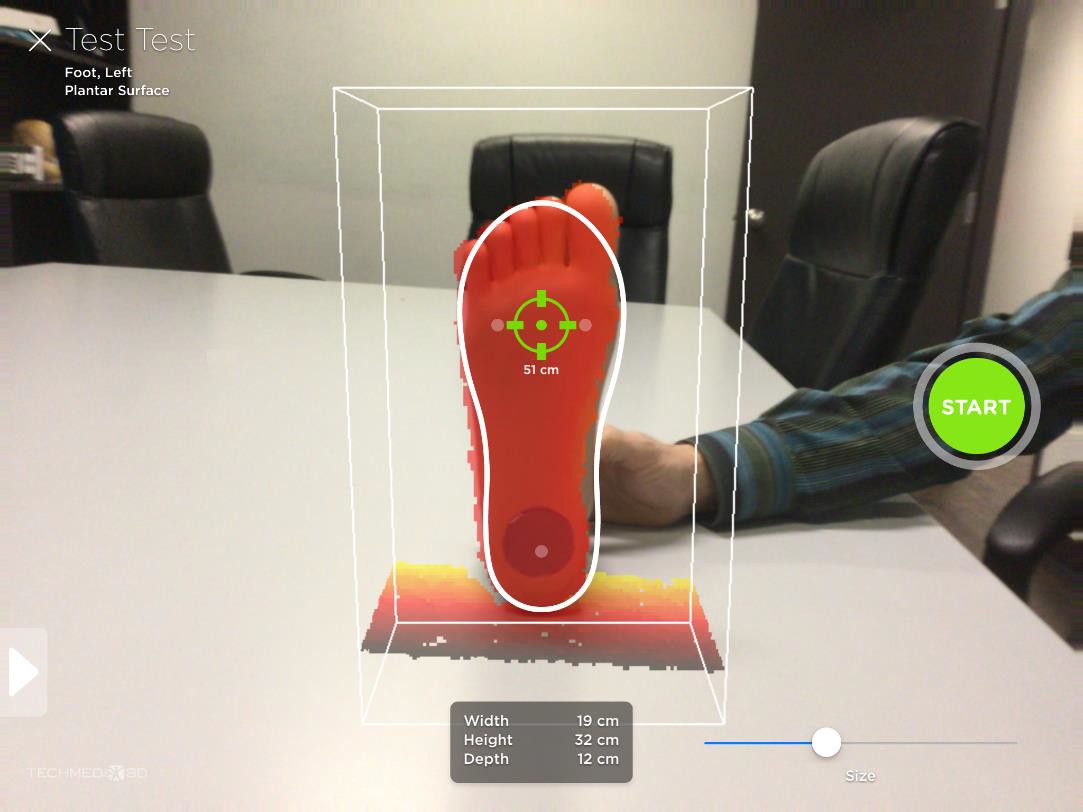

Good position
The foot gauge is correctly positioned on the plantar surface, all three dots are on the foot.
