Step by step guide to use MSoft’s compare module
Available directly within
MSoft, the compare module is a tool that can show the same body part, before
and after your intervention, side by side or even overlapped.
This allows you to validate
that the orthosis had the effect that you were aiming for. It is also a great
ally to help you determine if and what further adjustments are required.
1-Open the first file you wish to compare (the “before” file)
Files with MSoft’s proprietary formats (iMed and med) are
the only ones you can use within the compare module. The file must have been
processed before you can compare it. Watch this video
to learn how to process your file.
2-Use the Add/Edit base plane function (Cranial only)
You need to set the base plane exactly at the same place
on each scan. To make sure the base plane is set at the same place on each
scan, we suggest placing it right over the eyes.
3-Open the second file you wish to compare (the “after” file)
In the left corner of the software, click on File, then
on Compare. Again, only proprietary files can be compared within MSoft compare
module. Once you have added the second scan for comparison, they will be
overlapped.
4-Adjust the models
Models can be adjusted in two different ways.

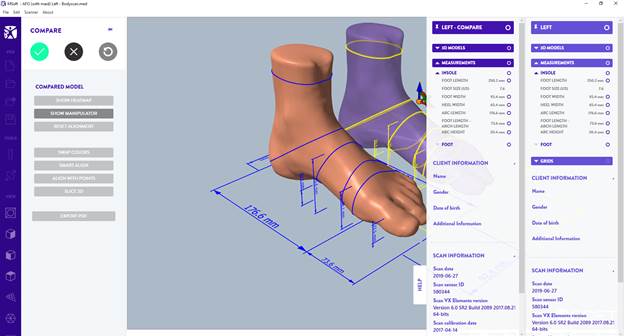

4.1-Manually with the manipulator
Use the manipulator to adjust the
view for a more manual and personalised experience.
To see 3D model’s slices
measurements, click on the Show manipulator button. Use the colored
arrows to place the models side by side as you desire.
4.2-Smart Align
Models
can be overlapped using MSoft’s algorithm with the Smart Align button. This
button is mainly recommended if you wish to use the heatmap function.

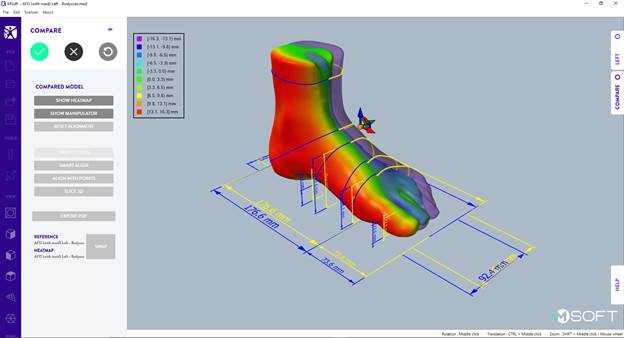

5-Display a heatmap
The show
heatmap button allows you to display a heatmap that compares the two files
currently open for comparison. Green is the baseline (meaning identical).
Negative values mean the comparison is smaller/lesser than the original, while positive
values mean the comparison is bigger than the original.
6-Compare the measurements in your tools’ sidebar
Once the result is properly separated, you can have your
detailed measurements in your tools sidebar. Click on Global and Compare
tabs at the top right corner of your screen. From there, you can have access to
the slice and volume measurements you need.
7-Export your data in a complete PDF report
If you need it, MSoft can create a
full PDF comparison report with a single click. In the left menu bar, click on Export
PDF to access your document.
